Outdoor Overhead Aerial Self-supporting FTTH Drop Figure 8 Fiber Optic Cable
Products Description
Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
| 1turn×10mm radius@1625nm | dB | ≤1.5 |
Cable Parameters
| Items | Specifications |
| Fiber Count | 2 |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Blue, Orange |
| Strength Member | Dimension | 0.5mm |
| Material | FRP |
| Self-Supporting Member | Dimension | 1.0mm |
| Material | Steel Wire |
| Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm |
| Material | LSZH |
| Color | Black |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension (Long Term) | N | 300 |
| Tension (Short Term) | N | 600 |
| Crush (Long Term) | N/10cm | 1000 |
| Crush (Short Term) | N/10cm | 2200 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |

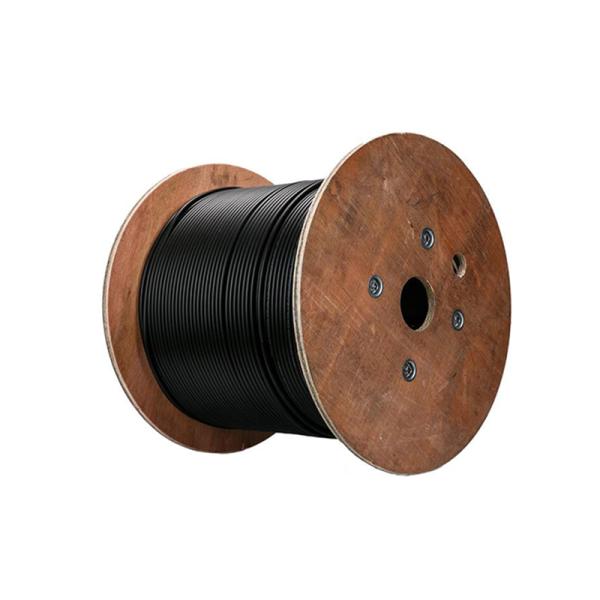

Packaging & Shipping
Our Service
Our company provides R & D, sales, technical support and after-sales service to ensure that our customers have a better purchase and use experience. Our strengths:
1. Source manufacturer
Factory direct sales, set research and development, production and processing, operation and sales of high-tech enterprises
2. Strong strength
With complete machining equipment and quality assurance supervision system, we provide first-class products for users
3. Quality assurance
Strict selection of high-quality materials, through fine production, strict control of each process to ensure product quality
4. Processing and customization
Accurate proofing, in order to solve the problem of slow efficiency, our proofing zone supports free drawings and samples, processing and customization
5. Stable supply of goods
Large scale systematic production, the factory can provide sufficient and stable supply of high quality goods
6. High quality after sale
Constantly improve the production process, improve the utilization of equipment, dedicated to our service for you, after-sales worry free
FAQ
Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.
Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!
Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.
Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
